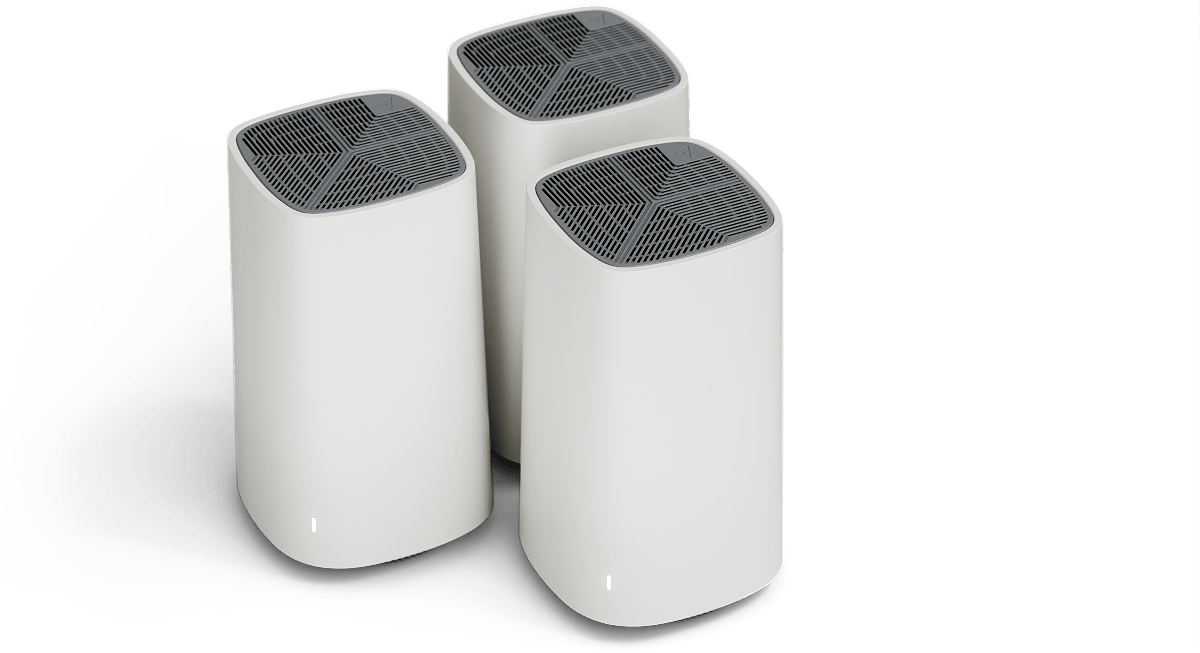

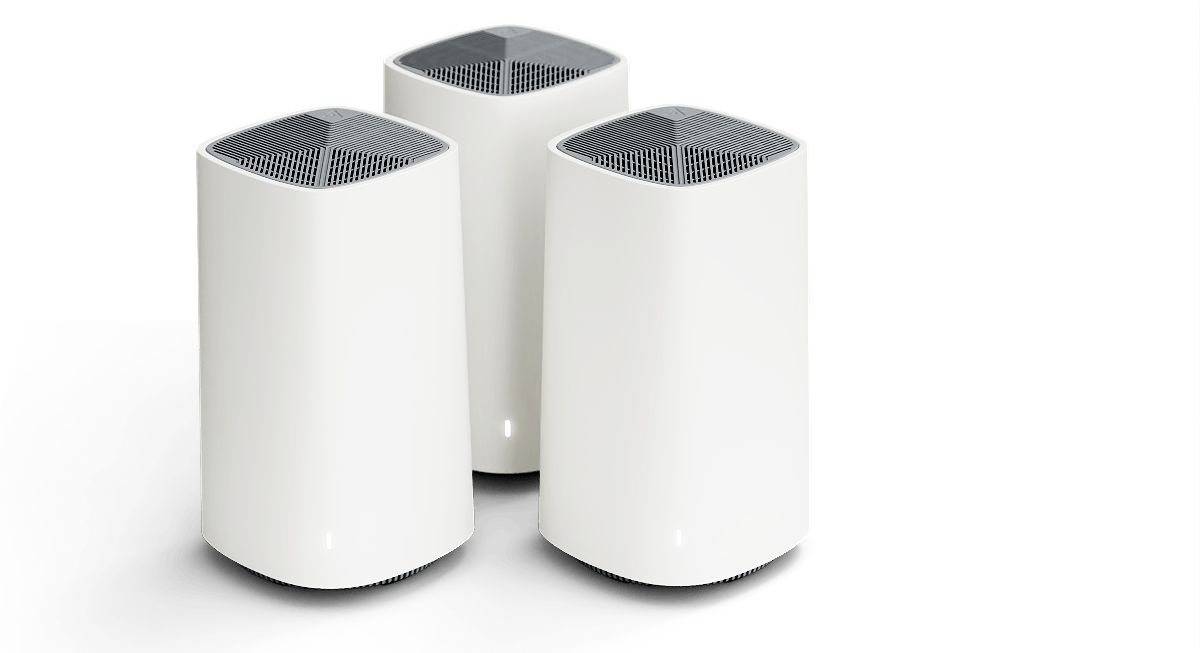

SDG 8700 Series
Harness the power of multigigabit Wi-Fi
Our SDG 8700 Series Wi-Fi 7 devices are true 10Gbit/s residential gateways built for the extremely high throughput (EHT) era. With 6GHz and ultra-wide 320MHz channel support, along with multi-link operations (MLO) support, they deliver Wi-Fi at speeds of up to 10Gbit/s and beyond. The SDG 8700 Series also ensures 85% lower latency for lag-free AR/VR and cloud gaming while providing more reliable coverage using all three bands. The SDG 8700 Series supports both Intellifi® and Plume-managed Wi-Fi platforms, as well as TR-069.
SDG 8733 (be19000)
Our SDG 8733 is a premium, tri-band Wi-Fi 7 (802.11be) residential gateway and mesh satellite, equipped with 10GbE WAN and 10GbE LAN ports to deliver true 10Gbit/s services. It features our highest-performing quad-core ARM processor, 4x4 radios on the 2.4GHz and 5GHz bands, and 4x5 radios on the 6GHz band, with 320MHz channel support, delivering up to 19Gbit/s of aggregate bandwidth to 200+ devices. The extra receive chain on the 6GHz band boosts throughput and delivers a 20% greater range. The SDG 8733 is USB-C PD powered and supports Intellifi®, Plume or TR-069 cloud management.
SDG 8733v (be19000)
Our SDG 8733v is a premium, tri-band Wi-Fi 7 (802.11be) residential gateway with 10GbE WAN, one 10GbE port, and two voice ports, enabling delivery of true 10Gbit/s services with voice. It features our highest-performing quad-core ARM processor, 4x4 radios on the 2.4GHz and 5GHz bands, 4x5 radios on the 6GHz band, and wider 320MHz channel support, delivering up to 19Gbit/s of combined bandwidth to 200+ devices. The extra receive chain on the 6GHz band boosts throughput and delivers a 20% greater range. The SDG 8733v is USB-C PD powered and supports Intellifi® or TR-069 cloud management.
SDG 8734 (be19000)
Our SDG 8734 is a premium, tri-band Wi-Fi 7 (802.11be) fiber residential gateway and mesh satellite, equipped with 10Gbit/s SFP+ WAN (XGS-PON or 10GbE) and 10GbE LAN ports to deliver true 10Gbit/s services. It features our highest-performing quad-core ARM processor, 4x4 radios on the 2.4GHz and 5GHz bands, 4x5 radios on the 6GHz band, and 320MHz channel support, delivering up to 19Gbit/s of aggregate bandwidth to 200+ devices. With five streams on the 6GHz channel, the SDG 8734 delivers up to 20% greater coverage. The SDG 8734 is USB-C PD powered and supports Intellifi®, Plume or TR-069 cloud management.
SDG 8734v (be19000)
Our SDG 8734 is a premium, tri-band Wi-Fi 7 (802.11be) fiber residential gateway with 10Gbit/s SFP+ WAN (XGS-PON or 10GbE), 10GbE LAN and two voice ports, enabling delivery of true 10Gbit/s services with voice. It features our highest-performing quad-core ARM processor, 4x4 radios on the 2.4GHz and 5GHz bands, 4x5 radios on the 6GHz band, and 320MHz channel support, delivering up to 19Gbit/s combined bandwidth to 200+ devices. The extra receive chain on the 6GHz band boosts throughput and delivers up to 20% greater coverage. The SDG 8733v is USB-C PD powered and supports Intellifi® or TR-069 cloud management.
| Features | SDG 8733 (be19000) |
SDG 8733v (be19000) |
SDG 8734 (be19000) |
SDG 8734v (be19000) |
|---|---|---|---|---|
| Wireless standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Mesh | Tri-band | Tri-band | Tri-band | Tri-band |
| Wi-Fi config | 4x4 (2.4GHz) 4x4 (5GHz) 4x5 (6GHz) |
4x4 (2.4GHz) 4x4 (5GHz) 4x5 (6GHz) |
4x4 (2.4GHz) 4x4 (5GHz) 4x5 (6GHz) |
4x4 (2.4GHz) 4x4 (5GHz) 4x5 (6GHz) |
| Application | Gateway | Gateway | Gateway | Gateway |
| WAN ports | 10GbE | 10GbE | 10G SFP+ |
10G SFP+ |
| LAN ports | 1x 10GbE 3x 1GbE |
1x 10GbE 3x 1GbE |
1x 10GbE 3x 1GbE |
1x 10GbE 3x 1GbE |
| Voice ports | 2x VoIP | 2x VoIP |
||
| Managed Wi-Fi platforms | Intellifi® Plume TR-069 |
Intellifi® TR-069 |
Intellifi® Plume TR-069 |
Intellifi® TR-069 |
;
